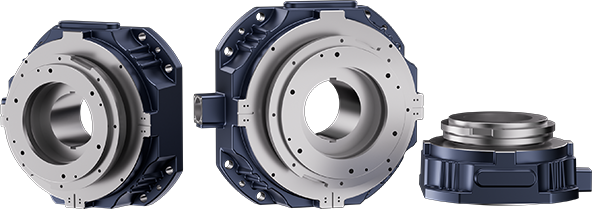

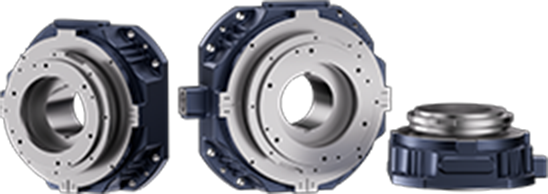

Disc-Type Spindle Motor

Compact Layout, Optimized Space

Adopts a unique flat structural design to save machine tool space. Compatible with original mechanical spindle specifications, it can be directly installed as a replacement.

High Efficiency and Energy Saving, Lower Cost

Through optimized electromagnetic design and advanced manufacturing processes, motor efficiency is improved, significantly reducing the energy consumption of machine tool equipment. The motor and spindle are independently connected, lowering after-sales maintenance costs in later use.

Long-Term Use, Stable and Reliable

Made with high-quality permanent magnet materials and refined manufacturing processes, it reduces maintenance requirements and greatly improves motor reliability and service life. The bearingless design avoids the risk of bearing failure. The liquid-cooled housing eliminates the risk of fan failure. The coil comes standard with dual-channel temperature sensing for reliable over-temperature protection. With no consumable parts such as belts, customer maintenance is minimized.

Fast Response, Higher Efficiency

Direct connection with the permanent magnet motor enables fast servo response and high rigidity. With low vibration, low noise, high machining finish, and an external heat source design, machining accuracy is more stable. Strong torque can be output even at low speeds, making machine tool startup and cutting processes more stable when machining complex parts.
