V800TA-10-S1V3P2

Core Positioning

A 10.4-inch large-screen CNC system designed specifically for standard horizontal lathes. It focuses on stability, ease of use, and cost efficiency, making it suitable for conventional turning applications.

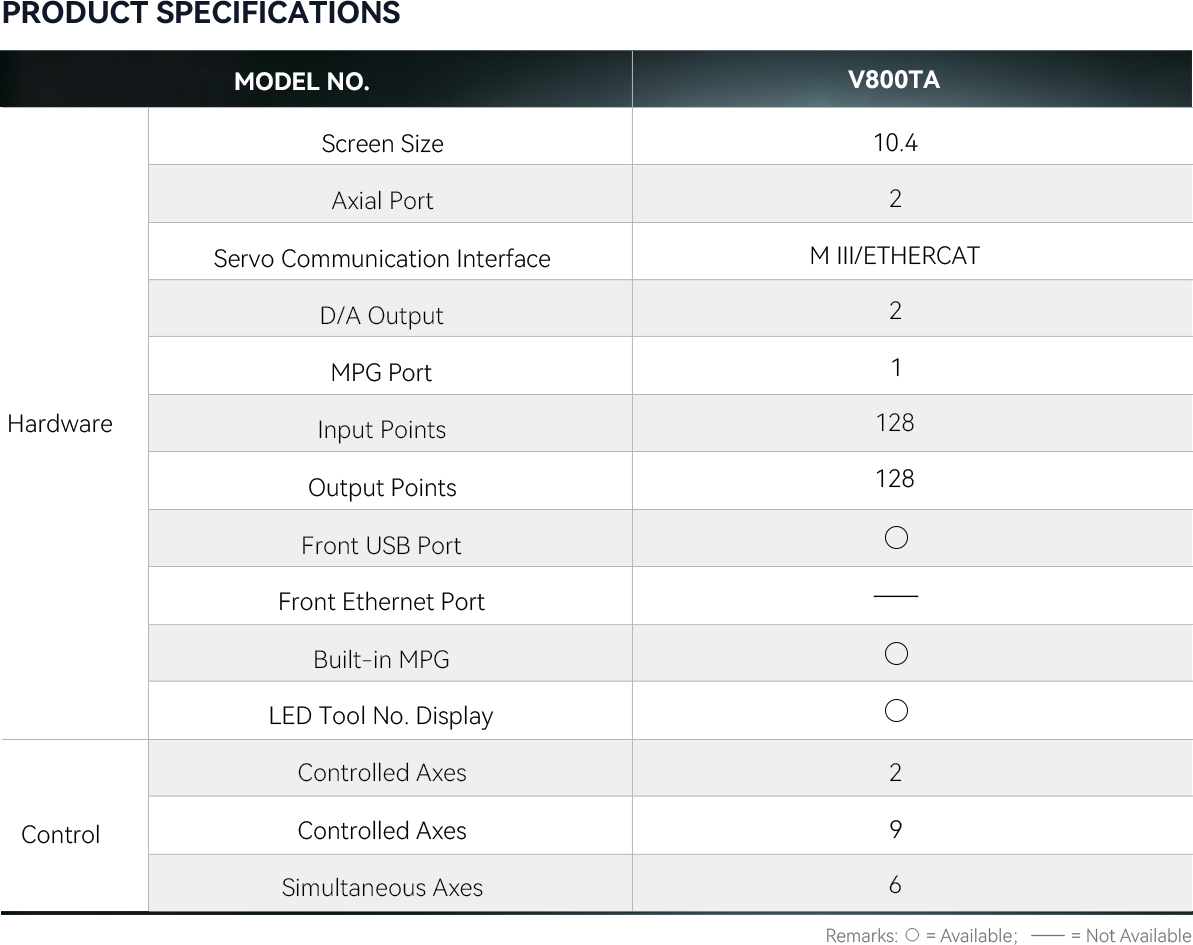

Hardware and Interface

The 10.4-inch horizontal touchscreen provides a wide operating view. The fanless sealed design enhances oil and dust resistance, making it suitable for harsh workshop environments and ensuring stable long-term operation.

Control Capability

Standard 3-axis control (S1V3) meets the requirements of X/Z axis linkage plus spindle control for ordinary lathes. It also supports basic dual-channel functions and is suitable for conventional servo spindle and feed axis drives.

Communication and Expansion

Integrated with EtherCAT, MII, MIII, RTEX, and other buses, it is compatible with mainstream servo motors. Secondary development is supported, enabling connection with simple automation upgrades such as loading and unloading robotic arms.

Typical Applications

Suitable for ordinary horizontal lathes, economical CNC lathes, and batch machining of shaft and disc parts, especially for small and medium-sized machining workshops.
