V800MA-10-S1V5P2

Core Positioning

A 10.4-inch large-screen CNC system designed for standard horizontal milling machines and vertical machining centers. It focuses on 5-axis control, stable and easy operation, and high cost performance, making it suitable for conventional milling and basic multi-axis linkage applications.

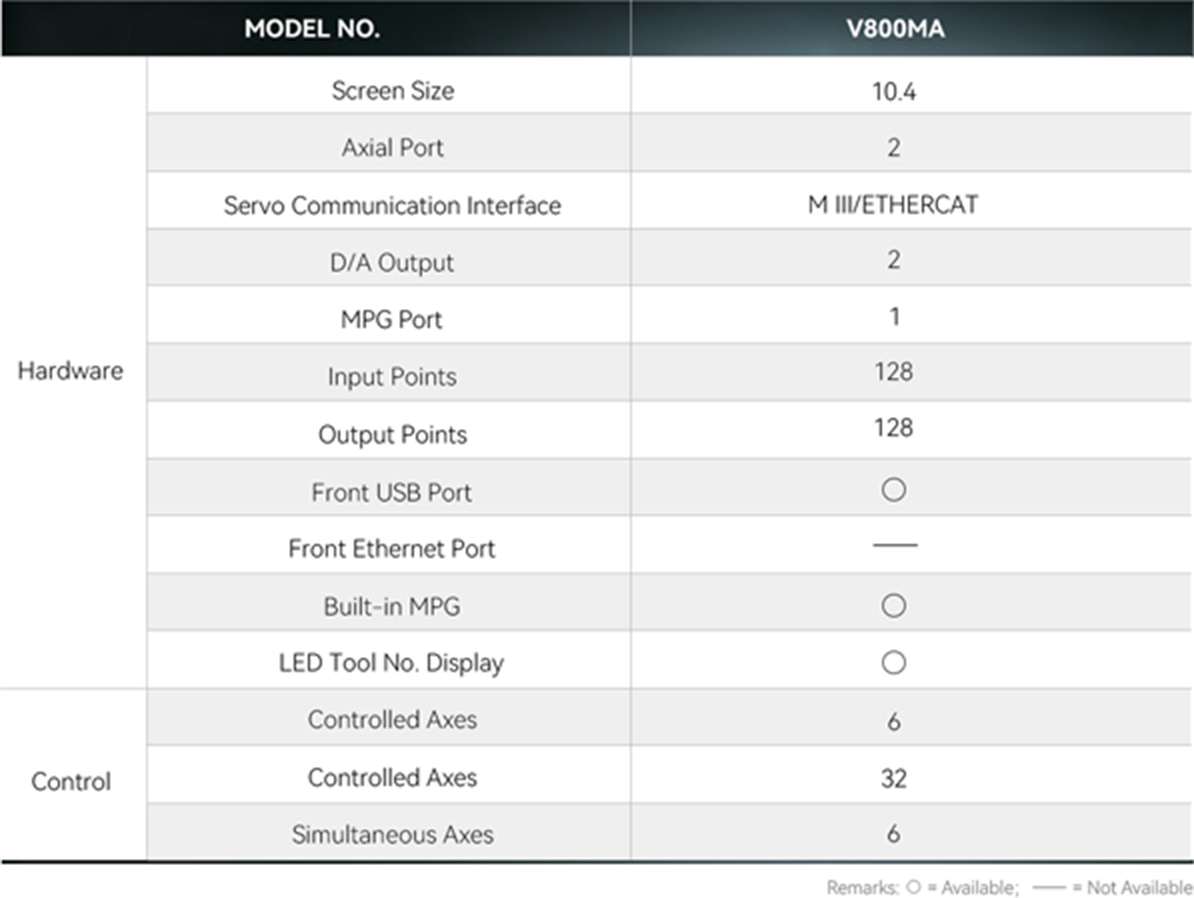

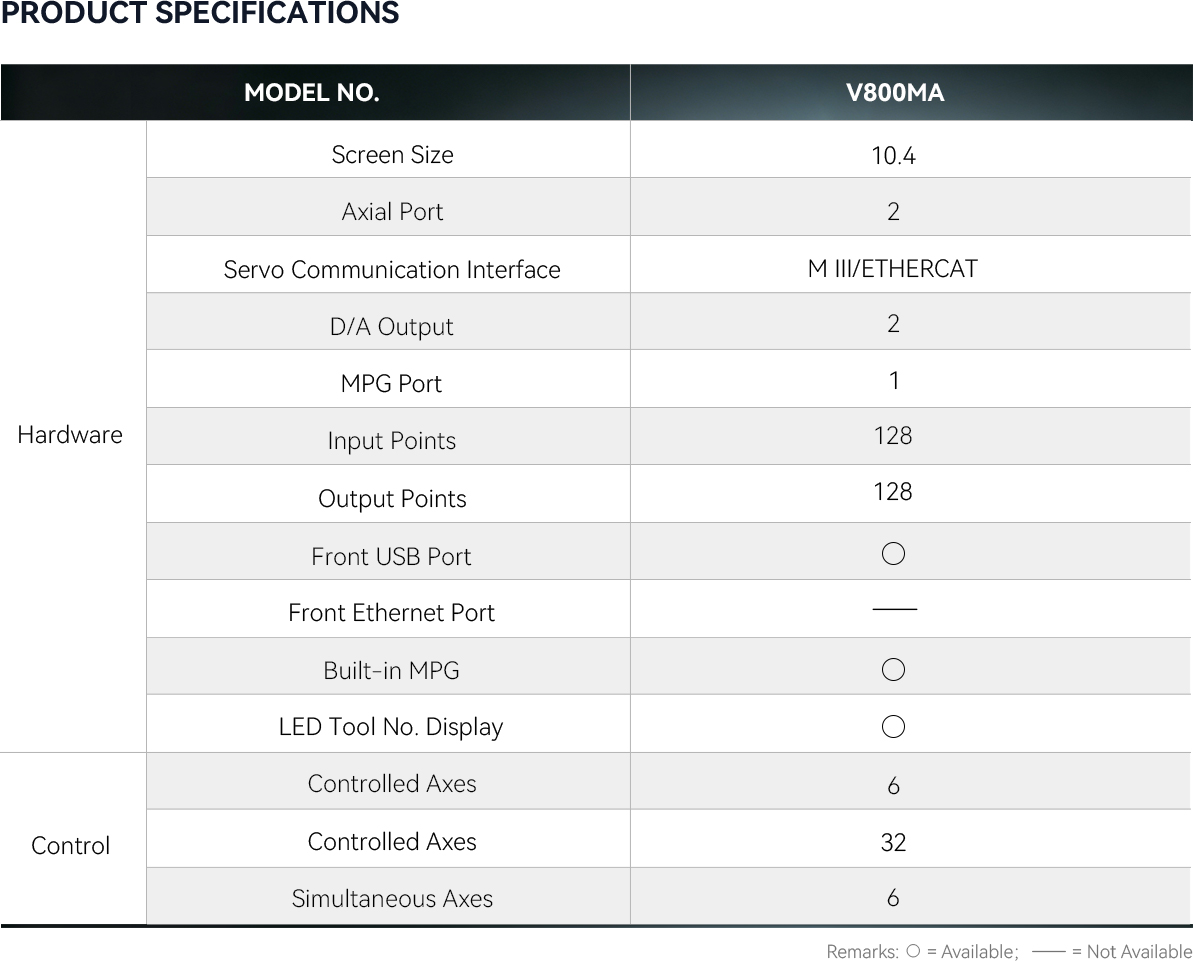

Hardware and Interface

The 10.4-inch horizontal touchscreen provides a wide operating view. The fanless sealed design enhances oil and dust resistance, making it suitable for harsh workshop environments and ensuring stable long-term operation. The interface is simple and intuitive, lowering the operating threshold.

Control Capability

Standard 5-axis control (S1V5) meets the linkage requirements of milling machine X/Y/Z/A/B axes plus spindle control, and supports basic multi-axis interpolation and positioning. With an upgraded high-speed computing core, it supports advanced dual-channel functions and is suitable for independent control of high-speed spindles and feed axes.

Communication and Expansion

Integrated with EtherCAT, MII, MIII, RTEX, and other buses, it is compatible with mainstream servo motors on the market and supports flexible upgrades. Powerful secondary development functions are available, enabling connection with advanced scenarios such as automated loading and unloading, and simple robotic arm linkage.

Typical Applications

Suitable for ordinary vertical milling machines, economical machining centers, engraving and milling machines, and drilling and tapping machines. It is ideal for batch milling of plate, disc, and cavity parts, and is suitable for small and medium-sized machining workshops.
